Foundation Repair Photo Album: Professional Reinforcement of Settling Foundation - Independence, OR

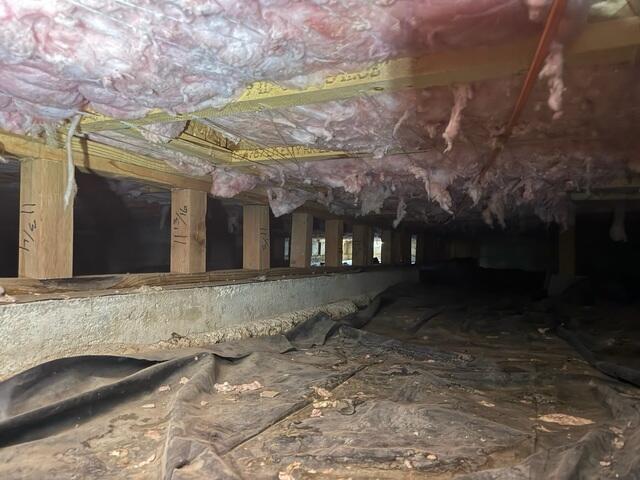

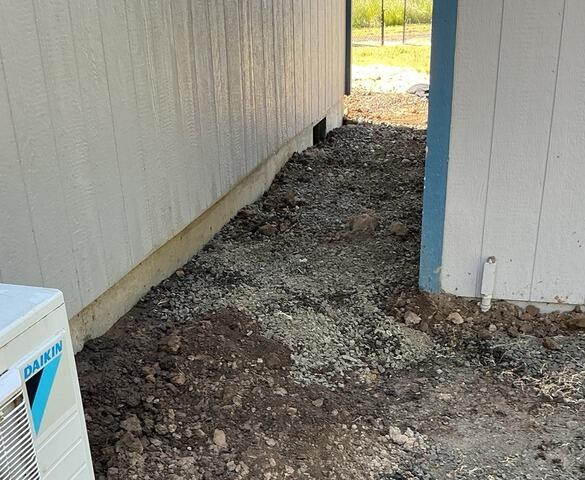

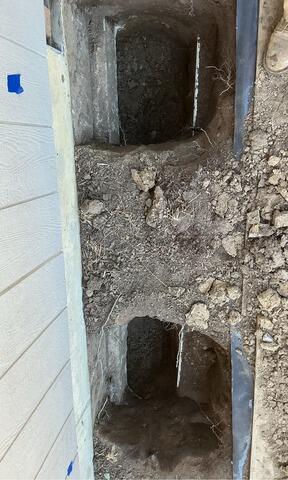

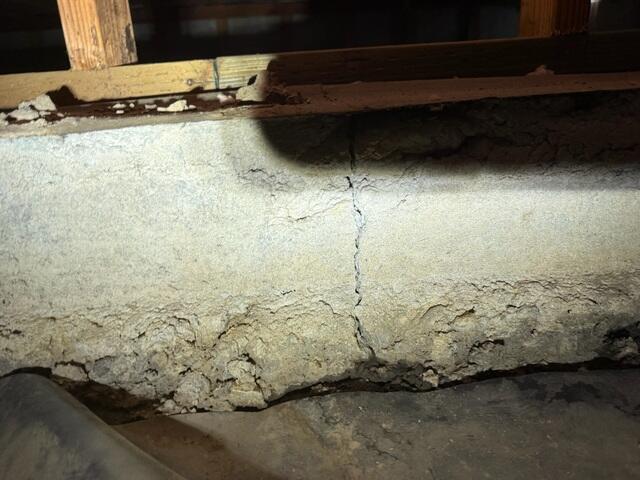

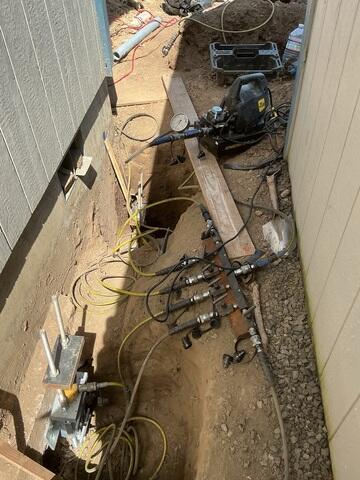

This homeowner called on John's after noticing several cracks in his concrete foundation walls, sloped floors in his home, and moisture within his crawl space. After our design specialist inspected this homes crawl space and foundation, he presented the homeowner with a customized proposal, which detailed his findings, and offered effective solutions, to which the homeowner agreed to. Due to the level of damage that water intrusion beneath this home had caused, the foundation and crawl space would need quite the makeover. Over many years, water intrusion had eroded the soil supporting the foundation and subfloor of the home, causing settling of these structural components. This settling created several cracks in the foundation walls, and uneven interior flooring - greatly compromising the integrity of the entire structure of the home. In order to repair existing structural damage, and prevent further damage, our crews worked together to complete the needed repairs.  To lift the settled concrete foundation walls back up to their appropriate and level height, our structural crew installed 11 helical piers directly onto the settling portions of the walls. Helical piers are bolted onto the foundation walls, and are then hydraulically drilled down into the Earth, until dense, weight-bearing stratum is reached, and the home is lifted and returned to its correct height. Helical Piers are extremely heavy-duty, and remain in their place of installation permanently. When installation is complete, they are easily concealed with basic landscaping. In order to reinforce this homes damaged subfloor, 6 Steel SmartJack posts were installed beneath a new Steel Beam. SmartJacks are adjusted by hand, until the entire subfloor, and all interior flooring is once again level - returning structural stability to the home. The newly installed Steel Beam, and SmartJacks will remain in place to support even weight distribution of the subfloor. Reinforcement of crawl spaces using John's heavy-duty steel components, offers rot resistance, and far superior strength compared to traditional wooden posts and beams.  To ensure permanent protection of the home against water, a full encapsulation was installed. John's encapsulated crawl spaces are sealed, waterproofed, and insulated from the ground up, to protect homes from the devastating effects of water damage. When encapsulating a crawl space, our crews install several heavy-duty waterproofing components within the space, to save homeowners time while offering peace of mind. Encapsulated crawl spaces are sealed entirely, allowing air quality to be easily controlled with our professional-grade dehumidifier. As 40% of interior air comes from your crawl space, having a clean, dry space beneath your home is imperative to protecting the health of your family. Encapsulated crawl spaces permanently protect all framing parts and pieces beneath the home from water damage - increasing the homes longevity and value, while protecting the family's investment into the home.  Thanks to the combined installation of John's encapsulation system, steel subfloor reinforcement, and hydraulic lifting of this homes foundation, this family can now rest comfortably in health and stability inside of their home. When this job was complete, our team reached out to the homeowner to ensure that everything was completed to his liking. He indicated complete satisfaction with our crews, and praised them for being "Fantastic!" With over 50 years of professionalism in the crawl space repair industry, you can count on John's to deliver high-quality waterproofing capabilities, and structural reinforcement to your home.
