John's Waterproofing Before & After Photos

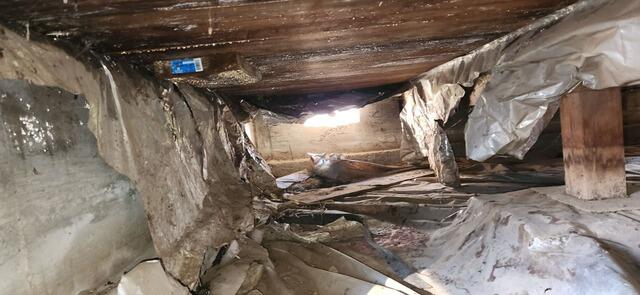

When moisture is a constant issue in the crawl space, this can lead to a plethora of issues. For this home it meant that the old fiberglass insulation was water logged and drooping from the HVAC systems. There was also a significant amount of debris that had been caked over the old vapor barrier, and a few wooden posts were damp, but not quite yet irreparable. To get the space healthy we would install a full waterproofing system. We installed a interior perimeter drain system which would collect groundwater and channel it to a newly installed TripleSafe sump pump. From here the water is discharged away from the home. TerraBlock insulation was than laid over the dirt floor and CleanSpace wrapped over it. CleanSpace is a 20 Mil vapor barrier with a woven fiber through it which helps to make it more durable and helps it to protect your home.

Most crawl spaces are unintentionally neglected. That is, until a problem that cannot be ignored presents itself. This crawl space was causing humidity and damp smells throughout the living area, which concerned the homeowners. Water in the crawl space causes moisture that raises indoor humidity leading to musty smells, discomfort and potential damage to the flooring, walls and even furniture. Wanting to find a permanent solution, these homeowners gave us a call and we went out to perform a free estimate. During the thorough inspection we found signs of active water, rodent nests and droppings. After the inspection we met with the homeowners to discuss options that will not only address all the issues but will keep the home protected for years to come. We went over the benefits of a full encapsulation and the homeowners moved forward with the estimate and scheduled their project.

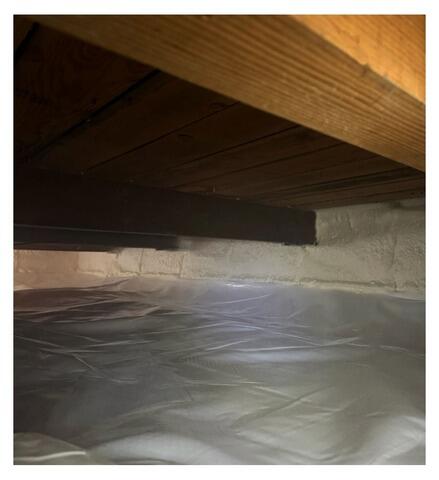

First, we start by removing all of the debris and old vapor barrier. Next, we dug a trench around the interior perimeter of the crawl space and placed a 3 inch perforated pipe into a silt sock to create a secure passage for water to properly drain to the lowest point. At this low point we installed our TripleSafe system that collects all of the water that enters and pumps it outside through a discharge line. We then make sure all of the vents in the crawl space are covered and sealed shut. Next, we install our TerraBlock. This system is designed to be installed onto the dirt floor to insulate and help block moisture. On top of the TerraBlock, we installed our CleanSpace system which is a heavy duty 20 mil thick barrier. We seal this at the footing of the wooden posts with our waterproof CleanSpace tape. This liner also gets anchored into the foundation walls, up to the rim joists. Outside, we install our EverLast door to create sealed exterior access into the crawl space. To control the environment, we install our SaniDry Sedona Dehumidifier that will eliminate damp and musty odors by drying and filtering the air and keep the home at a healthy relativity humidity; promoting healthier air throughout the entire home. To finish this encapsulation, we install our spray foam insulation onto the foundation walls. These homeowners can now have peace of mind knowing that their home is protected for years to come.

This basements walls were leaking water everywhere! And this home owner wanted to finish his basement, so we came out and installed a WaterGuard perimeter drain system and our thermal dry wall system. The Thermal dry will act as a vapor barrier as well as insulation. It will channel any incoming water from high up into our WaterGuard system making sure it won’t get on the basement floor. It is made out of inorganic material meaning no organic substance such as fungus, mildew or mild can grow on it. This basement is now waterproof and ready to be finished!

This homes crawlspace dirt floor was moist to the touch, and mold spores were creeping up some of the wood. To address the issue we installed a full encapsulation system to keep this space dry and healthy.

This homeowner was struggling with water in her basement. She even had to remove portions of her wall due to moisture.  Our crew came in and installed our patented Waterguard system before finishing the space with these beautiful Zen Wall panels. Now she will never have to worry about water or mold issues in her basement again, and will have a great finished guest bedroom.
