Foundation Repair Before & After Photos

This homeowner called us because the rock underneath his homes foundation was crumbling, causing his concrete foundation wall to slide with it. Our Design Specialist performed a thorough inspection, free of charge, and found that 1 portion of the rock beneath the concrete foundation wall was dramatically crumbling. He explained to the homeowner, that without proper intervention, his home would eventually fall into itself, because the crumbling of the rock supporting the foundation wall was so severe. The homeowner expected as much, and wanted to get started on repairs immediately. We added him to our schedule, and arrived at his home with our crew of structural experts. The crumbling was so severe, that our crew had to dig out a large amount of the rock, until it was flush with the foundation wall. When the strong and still intact foundation wall and the subfloor were perfectly in line, the crew began installing Steel Helical Piers, to lift the home back to its correct and level height. To install the Helical Piers, they first attached steel brackets to the foundation wall, and then hydraulically drill them through the bracket and deep into the ground. They continued drilling each pier down, until they reached soil that was dense enough to support the weight of the home, and then drilled even further into it until the home lifted. The Helical Piers will remain permanently in place to support the foundation, and ensure that the home experiences no further sliding or settling. Johns quick response to this extremely urgent matter, has eased this homeowners mind, and has returned stability back to a foundation that - without repair - would have caused catastrophic damage to this home, and greatly threatened the safety of the family within.

Accumulation of standing water had been a persistent issue for this concrete patio. Living in the PNW, there is no shortage of wet conditions throughout the year. Due to the downward sloping of this patio, all rainwater, as well as runoff from watering potted plants, continuously ran downhill to the lowest portion of the slab. The homeowners didn't like having to look at the ugly collected water, and they were concerned that the standing water could pose a safety risk. They called John's, and we came out to inspect the issue. Our Design Specialist explained to the homeowners about the possibility of permanent water damage, as well as how the damage could go further than only impacting the patio - it could also, overtime, cause catastrophic damage to the foundation walls of the home. This is because too much water seeping through the patio, and into the earth below that supports the foundation, could cause erosion of that soil, eventually leading to the sliding and crumbling of the foundation walls. Fortunately, the homeowners were on top of this issue, and called on us as the leading waterproofing experts, to intervene before it was too late. Our Design Specialist offered them the perfect solution, the installation of an XL TrenchDrain into the patio, to collect all water, and route it away from the home. They signed the Job Proposal, and we got them on our schedule! When our crew arrived, the first step was cutting out a narrow, 35 foot portion of the patio at the lowest point, to create a trench. Inside of the trench, we placed 35 feet of XL TrenchDrain, which is a metal drain that will remain permanently in place to collect all water intrusion, and will route it safely away from the home via a drain line. After placement of the TrenchDrain, we poured new concrete around it to hold it firmly in place, and to provide a nice finished look. The TrenchDrain has a metal cover on it, that is easily removeable for cleaning. These homeowners are happy to no longer have to look at dirty standing water while they're resting on their patio after a long day. They are also glad to know that they have made the right decision to protect the entire structure of their home from the devastating affects that years worth of standing water can cause, without proper implementation of quality solutions.

This homeowner first noticed that their floor was slanting in their kitchen. It then developed a slight bounce to it, followed by a few doors that were sticking in their frames. Looking for a solution before the issue progressed further, they called up John's Waterproofing. We scheduled their free inspection and discovered that their homes foundation had settled unevenly, leaving some of the wooden posts floating above their footings.

To address this issue we proudly offer SmartJacks. These replace the old wooden posts, anchoring into both the wooden beam above and the footing below. The SmartJack is then adjusted into place, stabilizing the home. These will not rot or mold, and can be adjusted more over the years if needed. Now the homeowners can enjoy their home being on stable ground once again.

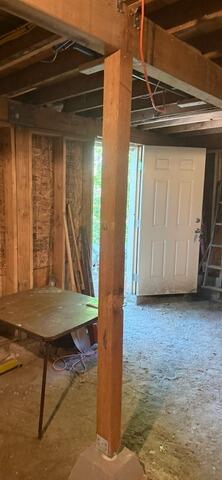

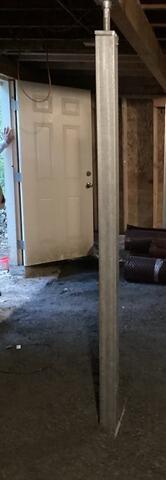

The basement above the floor of this home was sagging, one of the wooden basement posts was no longer providing adequate support. This is a very common issue with wooden posts, and one that the Structural experts here at John's are very familiar with. When our Design Specialist arrived at this home, he found that the ground of the basement was all dirt and had history of water intrusion, causing this wooden post to settle into the ground, under the pressure of the weight of the home resting on top of it. To return the sagging overhead floor to its correct height, we removed the old beam, and replaced it with a Steel SmartJack. We "jacked up" the SmartJack until the sagging floor was lifted back up. This Steel Post will remain in place to permanently prevent the floor from future sagging. Additionally, to address the issue of water intrusion into the basement, we installed our WaterGuard Full Perimeter Drainage System along the interior walls, to collect and expel all water safely away from the home through a sump pump through a discharge line. We also laid down our DrainMatt dimpled drainage matt on top of the entirety of the floor, to help gather and direct all water slightly downhill, and away from the home via a discharge line. On top of the DrainMatt, we built concrete forms, and poured new concrete tightly around the footing of the SmartJack, as well as the entire basement floor. After pouring, we gave the new slab a nice broom finish! The flooring above the basement of this home is now level once again, and with the basement waterproofed, the entire structure of this home is now protected and secure.

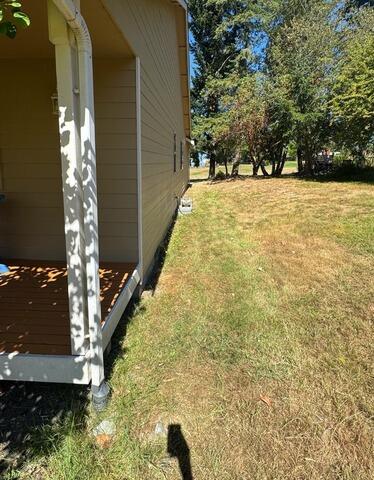

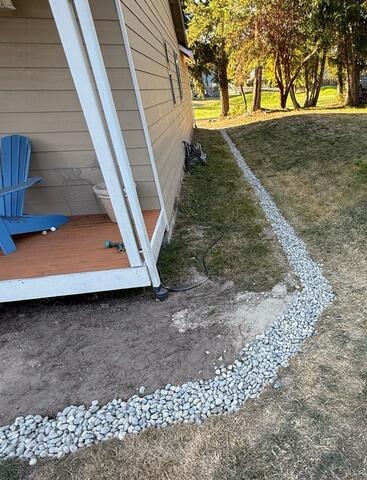

The exterior of the foundation walls of this home had started to erode, due to hydrostatic pressure against the walls caused by accumulated ground water. To stop further erosion, and to protect the strength of the foundation walls, our crew of experts installed an drain system to catch all ground water before it could reach the foundation walls. To do this, they dug a shallow trench, beginning at the back of the home, and wrapping around to the front. Inside of the trench, they laid down perforated pipe, to collect all ground water, and then covered this with decorative gravel, until the trench was filled. Covering the trench with gravel will help gather and route rain water into the system. They made sure that the drainage was installed at a downhill angle, to utilize the force of gravity to send all collected water downhill, to be expelled away from the home. At the expulsion point, we attached a LawnScape Outlet, to evenly disperse the water into the lawn. Thanks to the installation of this system, ground water will no longer be able to accumulate and create hydrostatic pressure against the foundation walls of this home. The experts here at John's have successfully restored structural integrity and stability to this family home. These homeowners can rest assured that the safety and long-term investment of their home is now protected by the installation of high-quality waterproofing components designed to prevent the disastrous affects that water damage can cause when left un-mediated.
